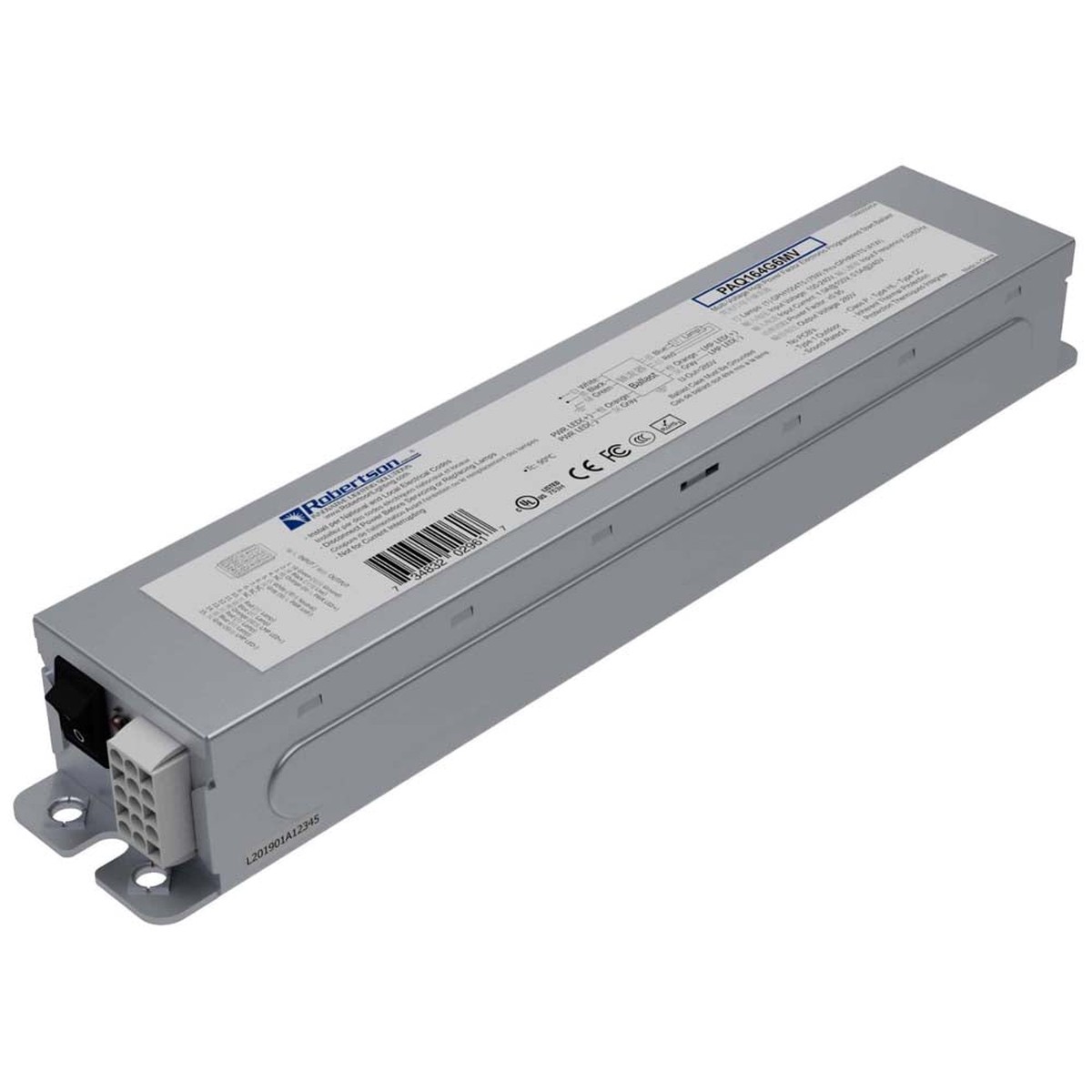

Name: Robertson PAQ164G6MV Electronic Program Start Ballast 100-240V
SKU: FD841853524
Availability: InStock

Rated 5.00 out of 5

Robertson PAQ164G6MV Electronic Program Start Ballast 100-240V

~~$218.00~~ $109.00

Description

Electronic Program Start Ballast (for Preheat Start Lamps), 425mA nominal lamp current with an Arc voltage between 92V-176V, Input voltage of 100-240Vac, for 1 41W-75W Lamp, 50-60Hz, wire harness connector (included with ballasts).

APPLICATION:
– Maximum Case Temperature 194F/90C
– Maximum Starting Temperature 122F/50C
– Minimum Starting Temperature 0F/-18C
– Lamp Starts > 50,000 Starts
– Remote Mounting 20 ft.Max.Lead Length,18AWG Shielded or in Conduit

SAFETY & CERTIFICATIONS:
– UL 935 (Class P,Type CC,Type1 Outdoor,Type HL)
– cULus,CE, CCC
– Leakage Current to UL/935 Standard
– EN 61347-1:2001
– EN 61347-2-1:2001
– EN 61347-2-3:2000
– RoHS EU Directive 2011/65/EU&2015/863 Amendment (RoHS 3 )
– Anti -Arcing
– Output Short Circuit Protection
– Output Open Circuit Protection
– Restrike Attempts = 2
– Inrush Current <40 AMPS
– Meets ANSI Standard C62.41 for Transient Protection
– Meets ANSI Standard C82.11 for Ballast Requirments
– Sound Rated A

Specs

Ballast Type	Electronic
Starting Method	Program Start
Color	White
Input Voltage	100-240Vac 10%
Lamp Connection	Parallel
Input Frequency	50-60Hz
Housing	22ga 5052 H43 Aluminum

Lamp Compatibility

– G36T5/4P/SE
– G64T5/4P/SE
– G64T5L/4
– GCL36T5L/Cell
– GCL36T5VH/Cell
– GCL793T5L/Cell
– GCL793T5VH/Cell
– GPH793T5L
– GPH793T5L/4
– GPH793T5L/4P
– GPH793T5VH/4
– GPH810T5L/4
– GPH810T5VH/4
– GPH843T5L
– GPH843T5VH
– GPH1148T5VH
– GPH1148T5L
– GPH1554T5L
– GPH1554T5VH
– GPH1630T5L
– GPH1630T5VH
– LTC40T5SE
– LTC64T5SE
– TUV 36 4P-SE T5
– TUV 64 4P-SE T5
