Description

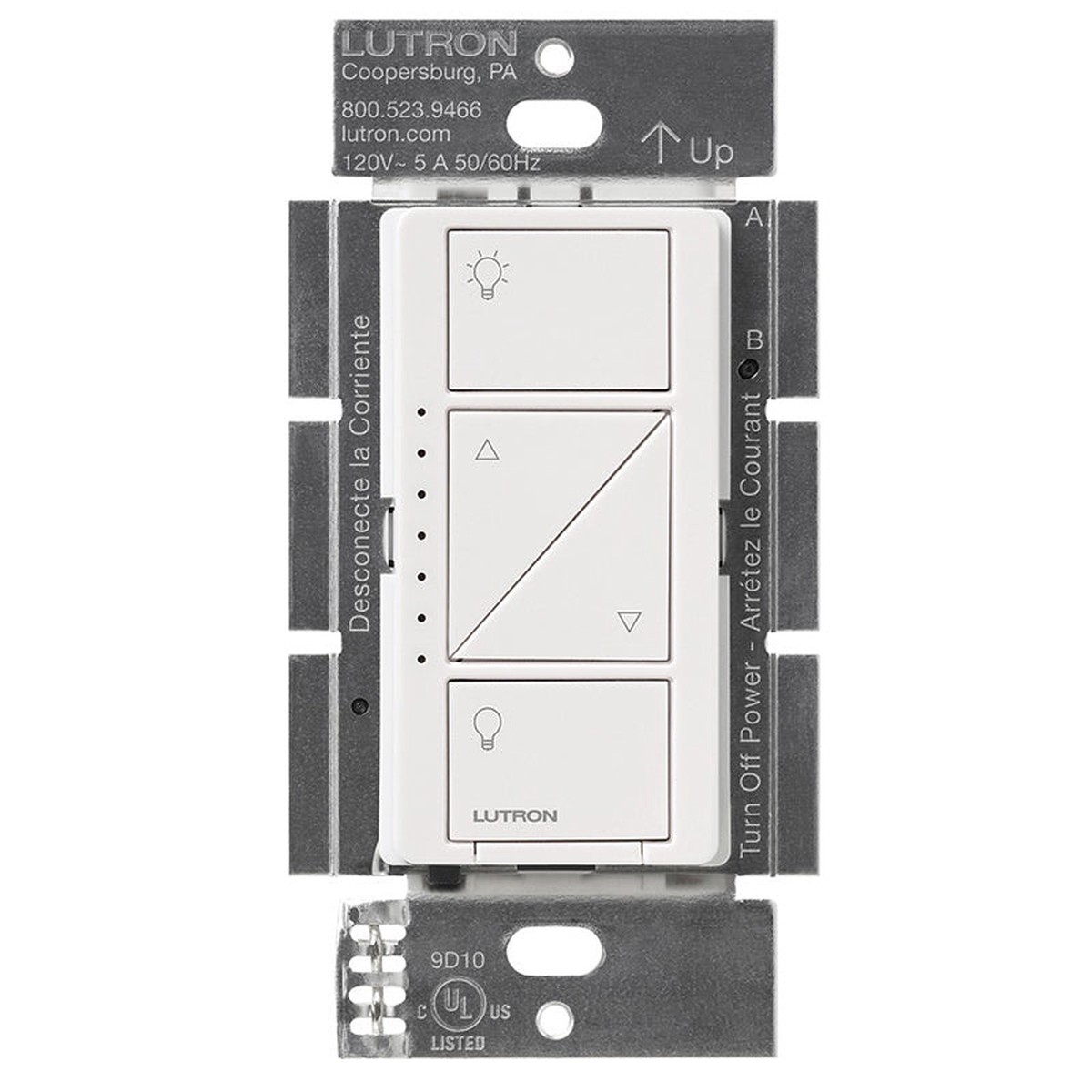

Lutron PD-10NXD-WH Caseta PRO Wireless – In-Wall Light Dimmer – White
The Caseta Wireless In-Wall Dimmer PRO controls lighting loads, both directly and remotely when paired with Pico remote controls, providing a system thatdelivers convenience and ease of installation. (PICO remote sold separately).The Caseta Wireless In-Wall Dimmer PRO uses Lutron patented Clear Connect RF Technology which enables wireless communication with Pico remotecontrols, Caseta motion sensors, and the Lutron Smart Bridge and Smart Bridge PRO.Features:
– The Caseta Wireless In-Wall Dimmer PRO provides dimming of multiple load types and, when paired with Pico remote controls, allows remote control fromanywhere in the space.
– The Caseta Wireless In-Wall Dimmer PRO can be paired to a Caseta motion sensor allowing the dimmer to automatically turn on/off.
– When used with the Lutron Smart Bridge or Smart Bridge PRO, the Caseta Wireless In-Wall Dimmer PRO may be programmed via the Lutron app,incorporated into lighting scenes, scheduled for daily events, and controlled from anywhere in the world1.
– Lutron patented Clear Connect RF Technology works through walls and floors.
– Includes Front Accessible Service Switch (FASS) for safe lamp replacement.
– Neutral-optional dimmer is ideal for retrofit applications when used in two-wire mode, and provides better performance with LEDs when neutral is connected.
– Compatible with Lutron Hi-lume A-Series LTE 2-wire LED driver, PHPM interfaces (for large wattage loads and/or ELV loads) and GRX-TVI interfaces (for 0-10 V- driver loads). The neutral wire is required for drivers and interfaces (for 0-10 V- driver loads).
– Works with compatible dimmable screw-in LEDs as well as incandescent, halogen, and halogen-based MLV loads (neutral wire required for MLV).
– Compatible with dimmable ballasts.

Works with energy efficient, dimmable light bulbs:
– LED up to 250w
– Halogen up to 1000w
– Incandescent up to 1000W
– Magnetic Low Voltage (MHV) Halogen up to 1000VA

Specs

Additional Info

Manual:

Caseta Wireless In-wall Dimmer Quick-Start Guide
Advance Installation
